HY10.30.C2.K Multifunctional Scales

Производитель: RADWAG
В наличии
12142
HY10.30.C2.K Multifunctional Scales
Наведите для увеличения

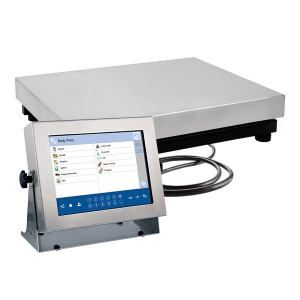

Multifunctional scales HY10 series is designed to fast and precise determination of mass in industrial conditions. The HY10 scales features terminal PUE HY10 series in stainless steel housing and a single load cell weighing platform in mild steel powder coated version. The HY10...


Multifunctional scales HY10 series is designed to fast and precise determination of mass in industrial conditions. The HY10 scales features terminal PUE HY10 series in stainless steel housing and a single load cell weighing platform in mild steel powder coated version.
The HY10 series scales features mild steel powder coated construction with stainless steel weighing platform. The terminal PUE HY10 series features a 10,1 colourful touch screen display, keyboard with numeric and function keys.
The scales enable cooperating with an additional weighing platforms. Additionally, the HY10 series offers full functionality available in the terminal PUE HY10 series:
  • programmable display and function keys,
  • designing custom printout templates,
  • designing text data indicated on terminal display.
Multifunctional scales HY10 series are offered with a terminal connected to a weighing platform through a cable.

Scales HY10 series is available in dual range version on surcharge.


Технические характеристики


Max capacity [Max] 30 kg
Readability [d] 10 g
Verification scale interval 10 g
Tare range - 30 kg
Pan Size 400×500 mm
Adjustment external
Working temperature -10 ÷ +40 °C
Atmospheric humidity 10÷85% RH no condensation
IP rating IP 65 construction, IP 68 (1h max)/69 indicator
Power supply 100 ÷ 240 V AC 50 ÷ 60 Hz
Display 10,1" widescreen colour dispaly 1024x600
Interface 2×RS 232, 2×USB, Ethernet, 4 IN / 4 OUT
Net weight/gross weight 16/18 kg
Packaging size 720×580×220 mm
OIML Class III

Технические характеристики весов

Max capacity [Max]:
30 kg
Pan Size:
400×500 mm
Readability [d]:
10 g
