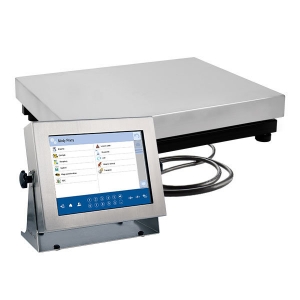

Multifunctional scales HY10 series is designed to fast and precise determination of mass in industrial conditions. The HY10 scales features terminal PUE HY10 series in stainless steel housing and a single load cell weighing platform in mild steel powder coated version.
The HY10 series scales features mild steel powder coated construction with stainless steel weighing platform. The terminal PUE HY10 series features a 10,1 colourful touch screen display, keyboard with numeric and function keys.
The scales enable cooperating with an additional weighing platforms. Additionally, the HY10 series offers full functionality available in the terminal PUE HY10 series:
- programmable display and function keys,
- designing custom printout templates,
- designing text data indicated on terminal display.
Multifunctional scales HY10 series are offered with a terminal connected to a weighing platform through a cable.
Scales HY10 series is available in dual range version on surcharge.
Технические характеристики
| Max capacity [Max] | 150 kg |
| Readability [d] | 50 g |
| Verification scale interval | 50 g |
| Tare range | - 150 kg |
| Pan Size | 400×500 mm |
| Adjustment | external |
| Working temperature | -10 ÷ +40 °C |
| Atmospheric humidity | 10÷85% RH no condensation |
| IP rating | IP 65 construction, IP 68 (1h max)/69 indicator |
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
| Display | 10,1" widescreen colour dispaly 1024x600 |
| Interface | 2×RS 232, 2×USB, Ethernet, 4 IN / 4 OUT |
| Net weight/gross weight | 16/18 kg |
| Packaging size | 720×580×220 mm |
| OIML Class | III |
Производитель:
RADWAG
